How to Configure the uTorrent Tab Settings

• Internet Explorer users need to change the "Document Mode" setting from Quirks Mode to a Standards Mode to view the full contents of this page.
• IE8 and IE9 - Tools>(F12) Developers Tools>Document Mode, wait for the change in left viewing pane, close Developer's window.

The current version of Media Center Master is 2.05. There are major changes to the program as to how it is represented in the wiki. The changes are on going and makes it difficult to up date the wiki.

As of December 11, 2012, for premium licensed users, only, Media Center Master has it's own, private, NZB Indexing Site. There is no additional account registration required to use the indexing service with Media Center Master. A complete Quick Set-up: Premium Version, Usenet Downloads guide is available in the wiki.

The biggest change in Version 2.04 took place were the "log," and "media summary" viewing area use to be. After adding media and clicking on a title from the media list, several tabs (i.e., Log, Summary, Metadata, and Files) will appear in the right side pane. More tabs are scheduled to be added in the future, such as: Media Info, Trailers/Subtitles, and a Episode Metadata Editor.

There have also been several changes made in the "Settings and Preferences" tabs. Some new tabs, and new settings have been added. The "Renaming" tab was changed to "Organization," and several of the old settings have been move from one tab to another. None of the settings have been removed from the program.

Version 1.32 is used for the examples in the wiki, unless otherwise noted. Although it may take a bit more work to find some settings, the wiki is still a valuable tool for a new user to get Media Center Master up and running. All of the settings used in the guides for a test run are still available, and should be used as described in the guides.

This is the first step in a three (3) part outlined process, to enable, configure, then set the connection for a communication link to Media Center Master and uTorrent for the integration feature.

• Issues with The "WebUI I.P. or hostname:" data entry field

• The "WebUI I.P. or hostname:" data entry field is for an external communication link to:

• Connect Media Center Master to;

• Another computer in a network, or
• Another computer in a different network, having

• uTorrent installed.

• The WebUI I.P. or hostname used in these guides is "localhost" (without quotes), because:

• uTorrent is installed

• On "this computer" (i.e., localhost)

• With Media Center Master.

• A substitution for "localhost" could be

• The I.P. address (e.g., 192.168.0.108), or
• The "Computer Name" for

• "This computer" with

• Media Center Master and
• uTorrent installed.

• Although leaving the "WebUI I.P. or hostname:" data entry field blank,

• May work at times,

• It should contain one (1) of the three (3) options from above to

• Prevent errors, and
• Conflicts.

• "localhost" is chosen in these guides, because:

• It is suitable for all new users of Media Center Master.
• It eliminates

• Extra steps, and
• Extra explanations to

• Identify a user's:

• I.P. address, or
• "Computer Name".

• Issues with The "port:" data entry field

• The port number being pasted into Media Center Master, was determined by uTorrent.

• uTorrent picked an unused port, at random,

• During it's installation set-up.

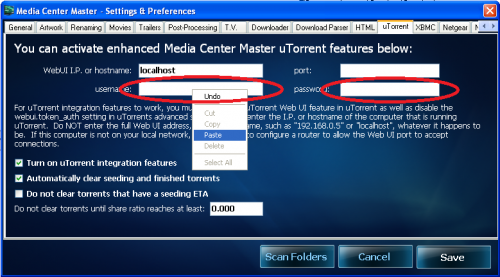

• Do not attempt to select and copy your password, as you will lose your username.
• Do not try to switch between the two programs to copy and paste the username, then copy and paste the password.
• Both programs will block the password out after it is entered, a copy/paste will not work.

• Do not attempt to select and copy your password, as you will lose your username.
• Do not try to switch between the two programs to copy and paste the username, then copy and paste the password.
• Both programs will block the password out after it is entered, a copy/paste will not work.

This is the second step in a three (3) part outlined process, to enable, configure, then set the connection for a communication link to Media Center Master and uTorrent for the integration feature.

• The user name and password entries are used for uTorrent's security protocol to gain access to it's Web UI feature.
• After clicking the "Save" button, the changes are saved to the different Media Center Master's registry key, string values.

• At this point, should there be no user errors, and no internal system conflicts of any kind, a communication link is set and established.
